FRA 224 SAFTEY STRIPE INSTRUCTIONS

This instructional guide is used for the following part numbers.

#SS001 -  FRA Yellow

#SS002 - Florescent Yellow

#SS003 - Aged Yellow

#SS004 - Group Pack

Image (211).jpg

Each letter (A, B, C) represent each size of stripe.

Letter A - 8" x 18" (End Stripe)

Letter B - 4" x 36" (End Stripe)

Letter C - 4" x 18" (Middle Stripe)

Each letter is shown below in the placement diagrams.

Placement Diagrams Per Rail Car

Version 1 - Diagonal Stripe

FRA Boxcar 1.png
FRA Gondola 3.png
FRA Hopper 2.png

Version 2 - Vertical Stripe

FRA 224 Boxcar.png
FRA 224 Hopper.png
FRA 224 Tank Car 2.png
FRA 224 Tank Car.png
FRA 224 Wellcar Flat Car Coil Car.png
FRA 224 Gondola.png

Stripe A or B can be used for end markings on a flat car, spline car or coil car depending on space and application.

Spacing- 12' maximum space between each center stripe on the rail car (0.1397" in HO Scale 1:87)

How to install


STEP ONE,
Remove each stripe
one at a time with a
pair of tweezers,
utility knife or a
toothpick. Careful
to only pull off
one stripe at a time.

STEP TWO,
Apply the stripe to
the model in the
desired location.
For best results,
find a smooth
flat surface without
rivets or seems in
the model.

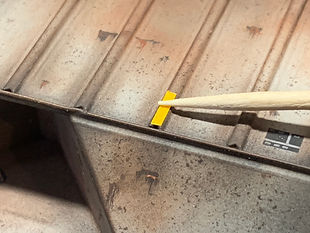

STEP THREE,
Burnish the stripe
using a tooth pick
or similar, careful
not to press too
hard. Do not use
anything metallic
or it may scratch
the model’s surface.

Covering up factory markings

Covering up factory markings is

very easy and clean. Just line up the stripe and apply. Also works over decals!


Optional Clear Coat Finish

To keep the safety stripe in place permanently on

the model, apply a light clear coat finish. This will protect your model and the adhesive stripes.

FRA 224 Schedule.jpg
